At Orefields Raise Boring we only use equipment that ensures highest safety, efficiency and quality to make sure we success in all projects. We build a lot of the peripheral equipment ourselves to ensure it suits our needs.

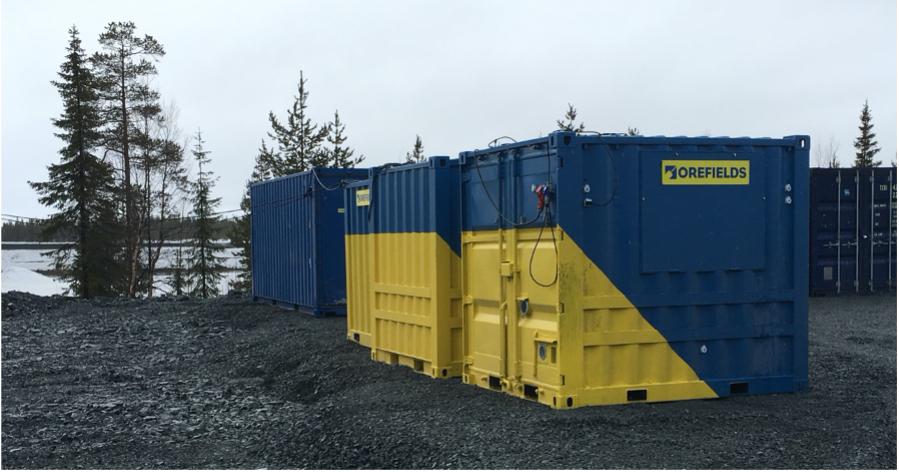

Orefields Container
Epiroc Robbins 123RH

Epiroc Robbins 123RH

  • Raise diameter: ∅0,35 – ∅6,5 meter
  • Raise length: Up to 1 100 meter
  • Reaming torque: 540kNm
  • Reaming thrust: 8 923 kN
  • Power requirement: 706 kVA 400 V 50Hz
  • Weight of rig incl. pipeloader: 32 000 kg
TRB Rhino 2000 at Orefields

TRB Rhino 2000DC

  • Raise diameter: ∅0,35 – ∅5,5 meter
  • Raise length: Up to 800 meter
  • Reaming torque: 460 kNm
  • Reaming thrust: 6 800 kN
  • Power requirement: 600 kVA 400 V 50Hz
  • Weight of rig incl. pipeloader: 24 100 kg
TRB Rhino 400H at Orefields

TRB Rhino 400H

  • Raise diameter: ∅0,25 – ∅1,8 meter
  • Raise length: Up to 400 meter
  • Reaming torque: 85 kNm
  • Reaming thrust: 2 010 kN
  • Power requirement: 160 kVA 400 V 50Hz
  • Weight of rig incl. pipeloader: 9 200 kg
